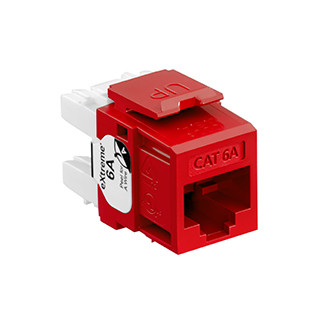

10G Cat6A RJ45 QuickPort Connector (6110G)

SKU:
6110G-RC6
Quantity:

Product Description

Leviton's eXtreme Cat6A Channel-Rated QuickPort Connector exceeds all channel performance requirements in ANSI/TIA-568.2.D and ISO/IEC Class EA as described in ISO/IEC 11801-1. The connector is designed to be used with all QuickPort compatible products and features patented injection-molded Cone of Silence® covers to eliminate alien crosstalk (AXT). The connector includes patented Retention Force Technology to promote consistent network performance over the life of the system. Unique Pair Separation Towers facilitate quick, easy terminations. The connector is configured in a 180-degree configuration such that the punch down field is in the back, allowing for rear termination.

  • Cat 6A/Class EChannel Performance
  • Terminates 26 to 22-gauge solid conductors and 24 to 22-gauge stranded conductors

  • Patented RFT protects against tine damage from 4- or 6-pin plugs
  • Alien crosstalk suppressed by Cone of Silence, metalized body, and new printed circuit board
  • Pair Separation Tower (PST) design facilitates separation of Cat 6A conductors
  • Patented, dual-layer wiring label simplifies punchdown and reduces rework
  • Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
  • ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications



  • ANSI/TIA-568.2-D (Cat 6A)
  • ISO/IEC 11801-1 (Class EA)
  • IEEE 802.3an 10GBASE-T
  • cULus Listed
  • ANSI/TIA-1096-A (formerly FCC Part 68)
  • IEC 60512-99-002
  • IEC 60603-7
  • IEEE 802.3bt PoE Type 1 (15.4 Watts) formerly 802.3af, Type 2 (30 Watts) formerly 802.3at, Type 3 (60 Watts), Type 4 90 Watts)
  • Cisco UPoE (60 Watts), UPoE+ (90 Watts)
  • Power over HDBaseTPoH (95 Watts)
  • UL 2043 Plenum Certified

Made in the USA
