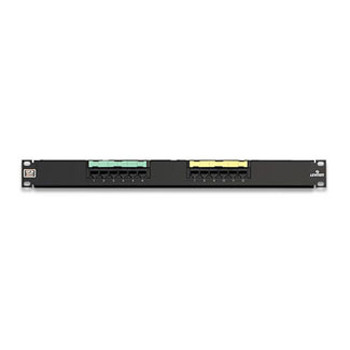

12 Port Gigamax Wall Mount Cat5e Patch Panel (5G596-U89)

SKU:
5G596-U89
Quantity:

Product Description

Leviton's 5G596-U89 12 Port Wall Mount Cat5e Patch meet or exceed the requirements for channel and component level performance as described in ANSI/TIA-568-C.2 Category 5e standards. The Cat5e patch panel features both T568A and T568B wiring configurations, rear cable management bars, and color-coded front window labeling.  89D bracket mounting.

  • Compact wall mount panel includes 89D mounting bracket
  • 12 Cat5e Ports with 110 termination on rear of panel
  • Channel and component rated
  • Connector spring wire contacts are highest quality phosphor bronze, plated with 50 microinches gold over 100 microinches of nickel.
  • Patented Retention Force Technology protects tines from damage from 4- or 6-pin plugs
  • Universal T568A and T568B wiring configurations.
  • Color-coded front labeling for easy port identification (ANSI/TIA-606-B compliant)
  • Grounding standoff for optional earthing/grounding
  • Includes 2 Cable Management Bars
  • 14 gauge steel panel
  • PCB and plastic components are rated UL 94V-0
  • Terminates 26-22 AWG solid conductors
  •  ANSI/TIA-568-C.2
  • ISO/IEC 11801
  • ANSI/TIA-1096-A (formerly FCC Part 68)
  • cULus Listed
  • IEEE 802.3at (Type 1) Power over Ethernet (PoE) applications up to 15.4 watts
  • IEEE 802.3at (Type 2) Power over Ethernet (PoE+) applications up to 30 watts
  • IEEE 802.3bt/D1.7 (Type 3) Power over Ethernet (PoE+) applications up to 60 watts
