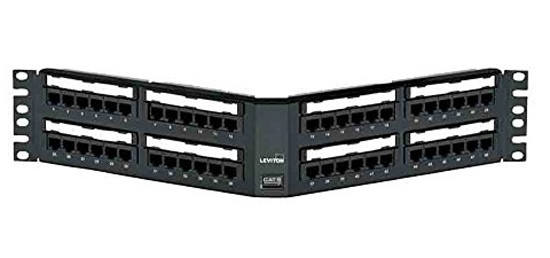

48 port Cat6 Angled Patch Panel (69587-U48)

SKU:
69587-U48
Quantity:

Product Description

Leviton's 69587-U48 48 port Cat6 Angled Patch Panel is designed to increase capacity in racks and cabinets. The 128-degree design routes cables into vertical cable managers, minimizing the need for additional horizontal cable management in racks. This system promotes long-term cable management and attractive cabling installations. Leviton Cat6 Angled Patch Panels are designed for use in high-megabit applications such as Gigabit Ethernet.

  • 48 port CAT6 Patch Panel features a 128-degree angled design
  • Patented Retention Force Technology protects tines from damage and increases system longevity
  • Universal T568A and T568B wiring cards for 110-style IDC terminations
  • Color-coded front labeling for easy port identification (ANSI/TIA-606-B compliant)
  • Terminates 26-22-gauge solid conductors
  • Capable of multiple re-terminations
  • Standards Compliance
  • ANSI/TIA-568-C.2
  • ISO/IEC 11801
  • ANSI/TIA-1096-A (formerly FCC Part 68)
  • cULus Listed
  • IEEE 802.3at (Type 1) Power over Ethernet (PoE) applications up to 15.4 watts
  • IEEE 802.3at (Type 2) Power over Ethernet (PoE+) applications up to 30 watts
  • IEEE 802.3bt/D1.7 (Type 3) Power over Ethernet (PoE+) applications up to 60 watts
  • IEEE 802.3bt/D1.7 (Type 4) Power over Ethernet (PoE+) applications up to 100 watts
  • Cisco Universal Power Over Ethernet (UPOE) applications up to 60 watts
  • Power over HDBaseTTM (POH) applications up to 100 watts
  • Mounts on 19-inch equipment racks
  • 14-gauge steel, painted black; PCB and plastic components are rated per UL 94V-0
  • Made in the USA
