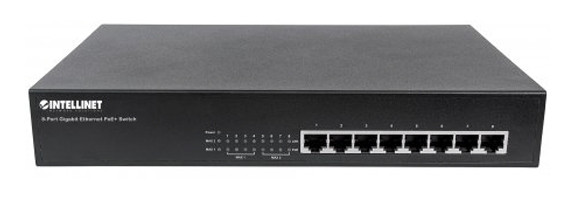

Intellinet's 8-Port Gigabit Ethernet PoE+ Switch (560641) is equipped with eight Gigabit PoE+ Ethernet ports. This switch can power wireless access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1000 Mbps. The 560641 supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*.  Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, equipment is well-protected.

* Total PoE budget for this switch is 140 watts. Per-port average power distribution is 17.5 watts; maximum per-port power usage cannot exceed 30 watts.

• Provides PoE and data connection for up to eight PoE network devices
• 10/100/1000 auto-sensing ports automatically detect optimal network speeds
• IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
• PoE power budget of 140 watts / Power output up to 30 watts per port
• Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices
• Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
• Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
• All RJ45 ports with Auto-MDIX (auto uplink) support
• Store and forward switching architecture
• IEEE 802.3x flow control for full duplex
• Supports up to 8K MAC address entries
• 256 kBytes buffer memory
• Fanless design ideal for silent operation
• Desktop-size metal case
• Includes 19" rackmount brackets
• Dimensions: 11.02" (W) x 7.09" (L) x 1.73" (H)
