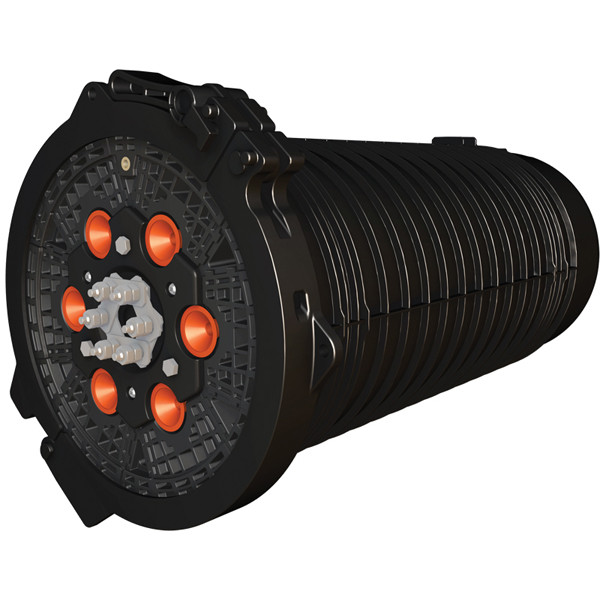

AFL Apex™ X-2S Sealed Fiber Optic Splice Closure (AX-2S-B-X-0-6-6-X)


Product Description

The Apex X-2S is a sealed splice closure designed for protecting optical fiber splices in both above or below grade applications in a butt configuration. The Apex X-2S is capable of up to 216 single fusion, 432 mass fusion with standard ribbon, or 1728 (200 μm, 864 max for 250 μm) mass fusion with “rollable ribbon” fiber types. Cables are sealed by a unique wedge system spaced evenly around the circumference of the closure’s base. Each cable seal is opened by a press-to-release lever and sealing is completed by actuating a single screw for each cable. Each cable is sealed individually, ensuring original craftsmanship when cables may be added at a later date. Up to 6 splice trays can be accommodated and hinge off a central organizer. A plastic slack storage basket resides underneath the trays with ample tie down points for managing tube and fiber slack.

  • Individual cable sealing ports with tool-less release mechanism and gel sealing
  • Hinging, lockable splice trays
  • Plastic slack storage basket
  • Six cable ports with six ground lugs
  • Compatible with AFL APEX AX2S Splice trays with universal splice modules capable of holding single fusion, mass fusion and mechanical splices as well as other devices such as passive optical splitters
  • Dome-to-base O-ring seal retained into dome to prevent loss or damage, but is still replaceable if necessary
  • Dimensions: 20.0"L x 12.0"D (51 x 30cm)
  • Weight (No Trays): 22 lb
  • Splice Capacity: Single - 216, Mass (SWR) - 1728, Mass (Standard) - 432
  • Splice Tray Capacity: 6 (no trays included)
  • Cable Diameter, Single Port: 0.40" – 1.10" (10.0 – 28.0mm)
  • Application: Direct Bury, Handhole, Aerial, Pole/Wall
