Product Description

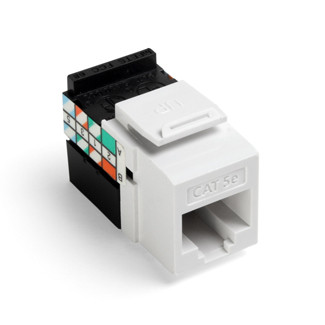

GigaMax® 5e+ Cat5e QuickPort® RJ45 Jacks feature Leviton’s patented Retention Force Technology (RFT), the connectors also feature unique pair separation towers allowing for quicker and easier terminations. The RJ45 GigaMax 5e+ QuickPort Connectors feature color-coded wiring labels with both T568A and T568B wiring patterns for dual flexibility in a single connector, plus fast, accurate 110 termination. Connectors meet standards for UL, NEC Article 800, and FCC Part 68, and are fully compliant with published TIA-568-B.2 requirements.
- 1000BASE-T performance for high-bandwidth applications
- Dual wiring code label allows connector to be wired to either T568A or T568B.
- Narrow connector allows high port density in a small area.
- Spring wire contacts are high-quality phosphor bronze, plated with 50 micro-inches of gold, over 100 microinches of nickel
- High impact fire-retardant plastic
- ANSI/TIA-568-C.2
- cULus listed
- ANSI/TIA-1096-A (Formerly FCC Part 68)
- IEEE 802.3at (Type 1) Power over Ethernet (PoE) up to 15.4 watts
- IEEE 802.3at (Type 2) PoE+ up to 30 watts
- IEEE 802.3bt (Type 3) PoE+ up to 60 watts
- Cisco Universal Power Over Ethernet (UPOE) up to 60 watts
- Made in the USA
