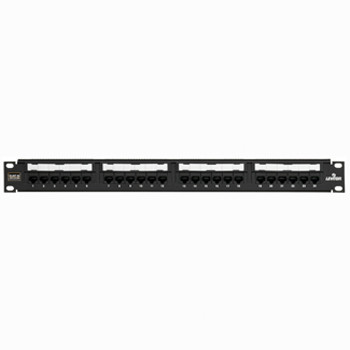

Cat6 24 port eXtreme 6+ Universal Patch Panel (69586-U24)

SKU:
69586-U24
Quantity:

Product Description

Leviton 69586-U24 24 port eXtreme 6+ Cat6 patch panels meet or exceed the requirements for channel- and component-level performance as described in ANSI/TIA-568-C.2 Category 6 standards. The 69586-U24 patch panel includes Leviton’s patented “Retention Force Technology” which promotes consistent performance over the life of the system. The 24 port patch panel features both T568A and T568B wiring configurations, cable management bars, and color-coded front window labeling. Leviton’s eXtreme 6+ Cat 24 port 6 Patch Panel is designed for use in high megabit applications such as Gigabit Ethernet.

  • 24 port Cat6 channel and component rated
  • Tested to 650 MHz
  • Retention Force Technology provides consistent performance and long system life even when 4 or 6 pin plugs have been used
  • Supports Power over Ethernet (PoE+) applications up to 100 watts
  • Supports Power over HDBaseTTM (POH) applications up to 100 watts
  • Universal T568A and T568B wiring
  • Color-coded front labeling for easy port identification (TIA-606-A compliant).
  • Grounding standoff for optional earthing/grounding.
  • Mounts on 19” equipment racks.
  • Connector modules are in groups of six.
  • Includes 1 rear cable management bar
  • 16 gauge steel, matte black
  • PCB and plastic components are rated per UL 94V-0
  • Components certified per cULus, NOM and ACA requirements.
  • Made in the USA
