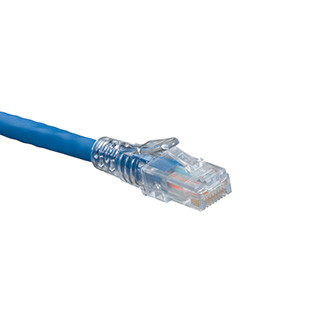

Leviton Cat6 SlimLine Boot Patch Cords feature a narrow profile to support traditional and high-density panels and switches. The snagless plug design makes the patch cords an excellent choice in environments where moves, adds, and changes are frequent.

• Tested and verified by Intertek (ETL) to meet ANSI/TIA-568-C.2 component standards
• SlimLine connector improves plug access in tight spaces
• Snagless plug design with integrated strain-relief boot
• Stranded conductor for longer flex-life
• T568B wiring to function in either T568A or T568B applications
• Channel performance verified by third-party testing in 4-connector, 100-meter channel
• ANSI/TIA-568-C.2
• IEEE 802.3at and IEEE 802.3af requirements
• ANSI/TIA-1096-A (formerly FCC Part 68)
• cULus Listed • ISO/IEC 11801
• RoHS • UL 444 CM Rated
• IEEE 802.3at (Type 1) PoE up to 15.4 watts
• IEEE 802.3at (Type 2) PoE+ up to 30 watts
• IEEE Draft 802.3bt (Type 3) PoE+ up to 60 watts
• IEEE Draft 802.3bt (Type 4) PoE+ up to 100 watts - maximum bundle size of 100 cords
• Cisco Universal Power Over Ethernet (UPOE) up to 60 watts
• Power over HDBaseTTM (POH) up to 100 watts - maximum bundle size of 100 cords
• Outer Diameter: 0.225"
• 24-gauge, UTP stranded conductor, modular non-keyed, 8-position, 8-conductor plug, 94V-0 rated
