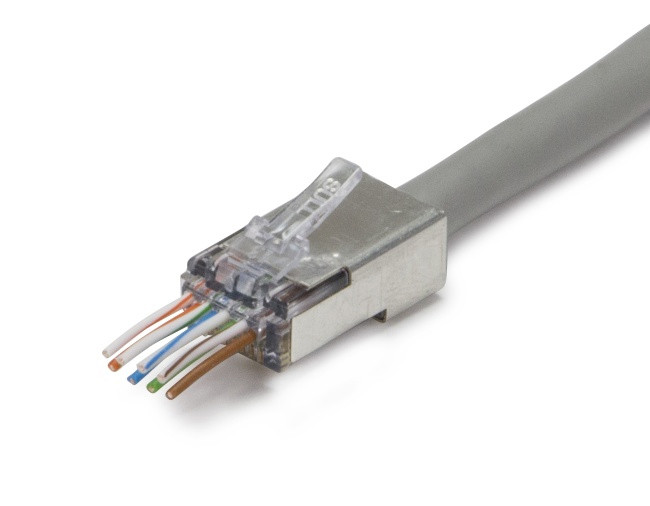

Platinum Tools ezEX-RJ45 shielded CAT6 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with CAT6 and is terminated with EXO Crimp Frame® and EXO-EX Die™ (100061C).

• Hi-Lo stagger to isolate each conductor
• Simple one piece/pass through design, no bars or liners
• Internal ground.
• Shielded 5e/6/6A compliant
• Insulation Diameter (Conductor) - Size range: 0.039” – 0.044” (1.0 –1.12mm)
• Max Outer Diameter: 0.280” (7.1mm)
• Solid or Stranded 24-22 AWG
• TAA, TIA, RoHS, UL & FCC compliant\
• Made in the USA
