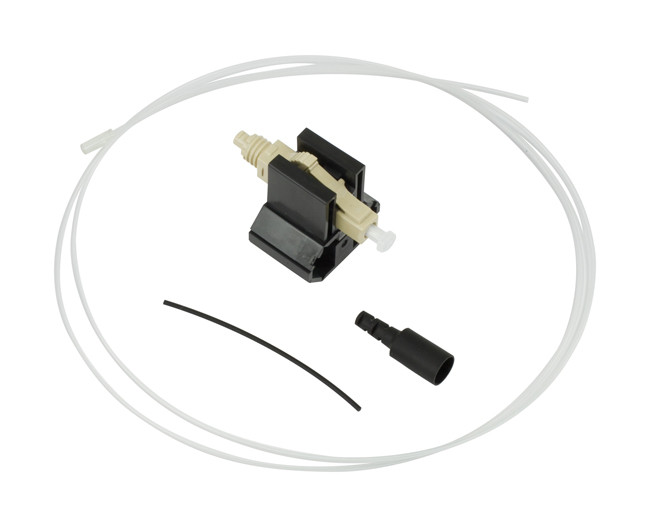

FASTConnect Field-Installable 62.5/125, OM1 LC Fiber Optic Connector FAST-LC-MM62.5-100

SKU:
FAST-LC-MM62.5-100
Quantity:

Product Description

AFL's FAST-LC-MM62.5-6 FASTConnect Multimode 62.5/125 µm, OM1 compatible LC fiber connector is a  factory pre-polished, field-installable connector that completely eliminates the need for hand polishing in the field. Proven mechanical splice technology ensures precision fiber alignment. A factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to OM1 multimode optical fiber.

Connector is color coded per industry-standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination.

Incorporated into this connector is an innovative, translucent wedge enabling the use of a common VFI to provide a ""pass/fail"" signal once physical contact is achieved.

  • LC connector
  • Multimode 62.5/125 µm, OM1 compatible
  • Color: Beige
  • No Epoxy, No Polish
  • Low Insertion Loss
  • Fiber Can Be Reinserted up to Three Times
  • Cable Size: 900 μm
  • Order 2mm or 3mm boots separately


Product Videos

Instructions for AFL FAST LC Connector on 900um fiber cable. 02:16

This video demonstrates step by step termination instructions for the AFL FAST LC connector on 900um fiber optic cable. Learn more about our line of FASTConnect® field installable connectors: http://bit.ly/1o9VM9P

  • Instructions f...
    This video demonstrates step by step termination instructions ...
