FASTConnect Field-Installable Single-Mode SC/APC Fiber Optic Connector FAST-SC-SM-100

SKU:
FAST-SC-SMAU-100
Quantity:

Product Description

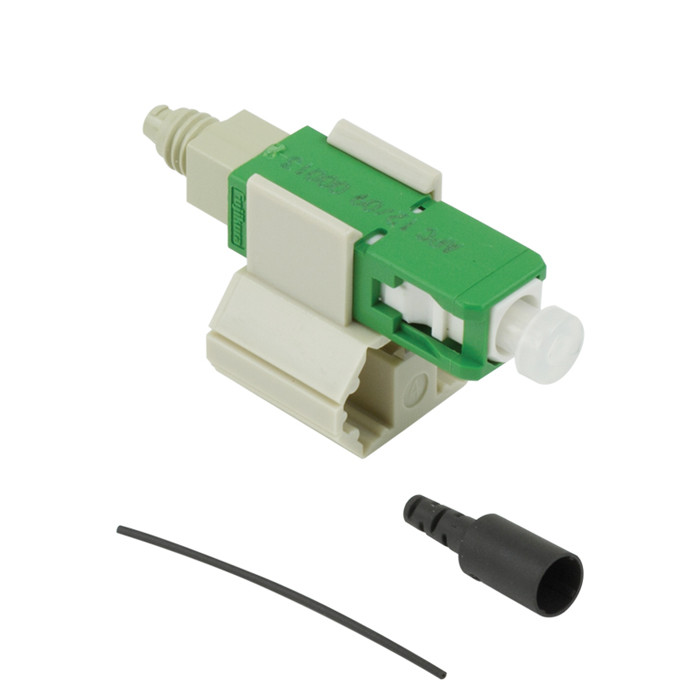

AFL's FAST-SC-SMAU-100 FASTConnect Single-mode SC/APC fiber optic connector is a factory pre-polished, field-installable fiber connector that completely eliminates the need for hand polishing in the field. Proven mechanical splice technology ensures precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate, low loss termination to single-mode optical fiber.

Connector is color coded per industry-standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination.

Incorporated into this connector is an innovative, translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved.

  • SC/APC connector  - Angle Polish
  • Sinlge-mode
  • Color: Green
  • No Epoxy, No Polish
  • Low Insertion Loss
  • Fiber Can Be Reinserted up to Three Times
  • Cable Size: 900 μm
  • Order 2mm or 3mm boots separately


Product Videos

FASTConnect SC Connectors Termination Instructions on 900um Fiber 02:17

Step by step termination instructions for our FAST SC Connector on 900um fiber cable. Learn more about our FAST™ Connectors Field Installable Connectors: http://bit.ly/FASTConnect

  • FASTConnect SC...
    Step by step termination instructions for our FAST SC Connecto...
