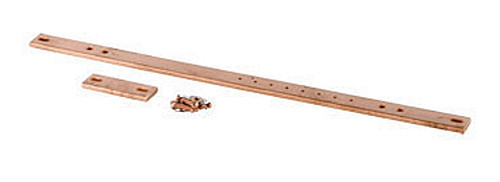

Ortronics OR-GBH19KIT Horizontal Ground Bar Kit mounts horizontally on 19" racks and enclosures, providing a convenient place to connect equipment grounds. Made of electrolytic tough-pitch 110 copper alloy, the GBH19KIT complies with ANSI/TIA-607-D, meeting open frame rack and cabinet bonding and grounding requirements for telecommunication room and data center applications.

Dimensions: 1.00" x 19.25" x .25"

Kit includes:
(1) 1/4” thick electrolytic tough pitch 110 copper alloy bar
(1) 3” bar splice plate with 2 slotted holes
(2) White delrin insulators
(2) 12-24 x 5/8” hex washer head screw
(2) #12-24 x 3/4” copper flashed brass screw
(2) #12 copper flat washer
(8) #6-32 x 1/4” copper flashed brass screw
(8) #6 ring terminal
(1) #6 long barrel compression lug, 3/4” o.c. for 1/4” hardware
(2) 1/4”-20 x 3/4” stainless steel cap screw
(2) 1/4” stainless steel lock washer
(2) 1/4”-20 stainless steel nut
