Injection-Molded Plastic Splice Tray 12 Fiber

SKU:
T5PLS-12F
Quantity:

Product Description

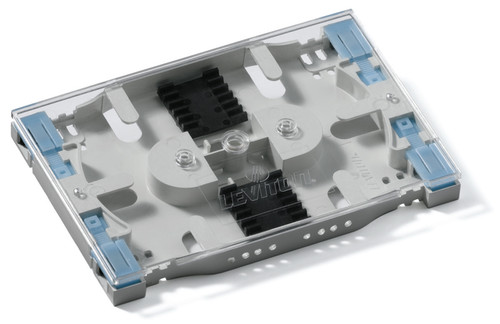

Leviton T5PLS-12F Injection-Molded Plastic Splice Tray provides protection and slack management of heat-shrink fusion of up to 12 spliced fibers inside of a fiber enclosure. Accommodates 250 or 900μm fiber and features a clear cover for viewing and inspection of tray contents.

  • Four ratchet action clamps with foam rubber padding to minimize crush of loose tube or tight buffer fiber
  • Clear cover allows viewing or inspection of fibers without having to remove cover
  • Multiple tie-down holes for securing incoming fiber
  • Accepts up to 12 heat-shrink-style fusion spliced fibers
  • Accommodates standard heat-shrink sleeves in 40 or 60 mm lengths
  • Includes heat shrink splice sleeves
  • Mounting hardware sold separately
  • Center hole for mounting of tray
  • 5.59" x 3.74" x .53"
