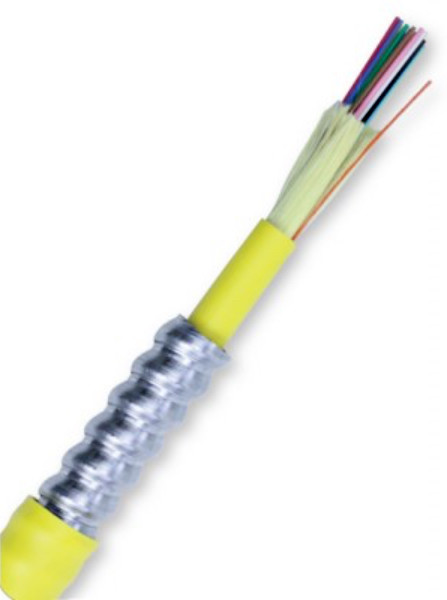

Leviton Berk-Tek PDP024AB0707-I/O-C4C5(YEL) is a 24F Singlemode Plenum rated Armored Indoor/Outdoor tight-buffer cable, designed specifically for LAN/WAN campus and building backbone cabling infrastructure. The tight buffered indoor/ outdoor plenum interlock armored cables are designed for installation in plenum, horizontal, and interbuilding backbone structures. Suitable for operation across wide temperature variations typically addressed by outside plant cables, and for use in conduit below the frost line. No buffer tube fanout kits are required.

FEATURES & BENEFITS

• ARMOR-TEK Interlocking Armor is wound around the cable core
• Water blocked cables feature fungus resistant jacketing, and are sunlight resistant per UL 444 clause 7.22
• DryGel water blocking system in the cable core
• Aluminum interlock armor is covered by a plenum rated jacket
• Flexible, 900 μm tight buffered construction
• No buffer tube fanout kits are required
• Configuration suitable for indoor/outdoor installations in conduit below the frost line
• One cable design meets all structured cabling network communications applications

Fiber: 8.3/125 Singlemode OS2 - Bend Insensitive
Fiber Count: 24
Wavelength: 1310nm/1550nm
Max Attenuation: 0.5/0.5dB/Km
10Gb Min Link Length: 10,000 meters/1310nm
Environment: Indoor/Outdoor
Cable Type: Premise Cable/Distribution
Flame Rating: Plenum
Jacket Color: Yellow
Nominal Diameter: .59"
Minimum Bend Radius: 8.9"
Operating Temperature: -40 °F to +167 °F
