Leviton LANMARK-1000 offers best-in-class electrical performance. Engineers designed LANmark-1000 to ensure that all crosstalk parameters have 5 dB of headroom over the Cat 6 standard. As a result, the Power Sum Attenuation to Crosstalk Ratio (PSACR) is nearly three times better than the standard (at 250 MHz), allowing for much greater signal strength and less vulnerability to noise interference.

Optimal support for Gigabit Ethernet with headroom
Power sum characterization gives highest performance using existing applications
Addition of balance requirements improves overall cable performance and reduces cable emissions which results in reduced transmission errors
Characterized to 350 MHz, 100 MHz greater than the standard
Able to bundle 312 cables to support 100 W PoE

FEATURES

• Full Power Sum Performance
• Documented balance characteristics (TCL, ELTCTL)
• 23 AWG copper conductors

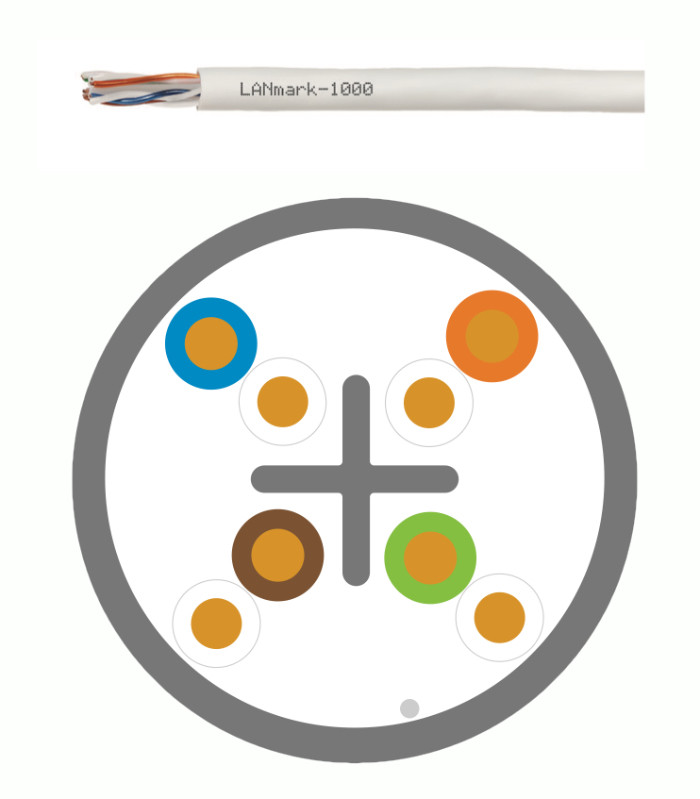

• Two insulated conductors twisted together to form a pair and four such pairs laid up with cross filler to form the basic unit, jacketed with flame-retardant PVC
• Performance to these beyond standard specifications are independently verified by ETL as part of the LM Verified Performance program
• Made with Leviton's advanced FLX-1™ technology for maximum flexibility, tighter bend radius and smoother pulls

STANDARDS & REGULATIONS

• ANSI/TIA 568.2-D
• ISO/IEC 11801
• IEEE 802.3bt PoE Type 1 (15.4 watts, formerly 802.3af) Type 2 (30 watts, formerly 802.3at), Type 3 (60 watts), Type 4 (90 watts)
• Cisco UPOE (60 watts), UPOE+ (90 watts), Power over HDBaseT™ PoH (95 watts)
• UL 444
• RoHS Compliant

FIRE RATING

• Riser UL 1666
• CMR- Riser Rated
• ETL Listed

White Jacket - 1000 feet

COUNTRY OF ORIGIN USA
