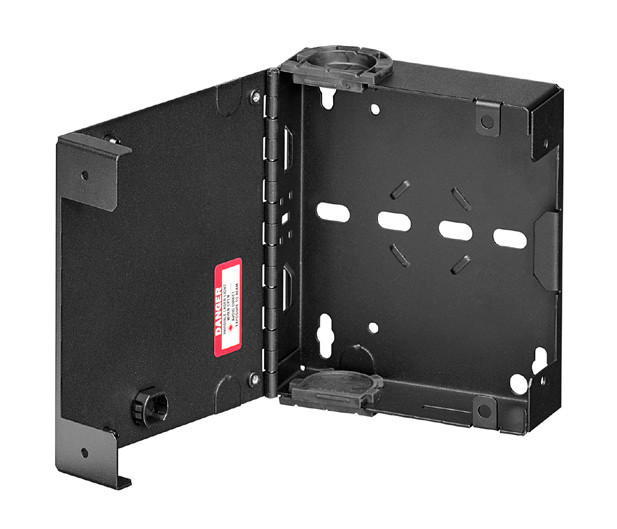

Mini SDX Wall-Mount Fiber Enclosure, empty, no lock (5WMNT-01C)

SKU:
5WMNT-01C
Quantity:

Product Description

The 5WMNT-01C Opt-X SDX Mini Wall-Mount Fiber Optic Enclosure allows for inter-connect or cross-connect between cable and active equipment while using minimum wall space. The enclosure's features and design allow for easy field termination of fiber connectors, splicing, or pre-terminated plug-and-play solutions. The fiber enclosure is primarily used in controlled indoor applications, such as in entrance facilities, equipment rooms, and telecommunications rooms, work areas, and 0RU applications.

  • Enclosure is sold empty (unloaded) for install in indoor controlled environments
  • Accommodates up to 24 fibers (using LC), 12 fibers (using SC), and 6 ports (for copper)
  • Accepts SDX Precision-Molded Adapter Plates and SDX MTP Cassette for multiple solution capabilities
  • Capable of storing up to three meters of 900 μm tight-buffered fiber per adapter
  • 40 mm maximum length splice sleeves (sold separately) recommended for individual fiber splicing
  • Removable cable entry/exit grommets allow for pre-terminated fiber trunk install, cable protection, and minimizes dust build up
  • Constructed of 16-gauge steel for enhanced durability
  • Optional key/lock kit secures the door for added physical security
  • Optional 0RU mounting bracket and magnet solutions available
  • Multiple application usage, including wall mount, 0RU in rack/cabinet, ladder rack, workstation, cubicle, and within an enclosure (using adhesive-based tapes or magnets)
  • Powder-coated black
  • Includes an accessory kit consisting of cable VELCRO® Brand ties, mounting screws, port ID label, and patch cord cable managers
