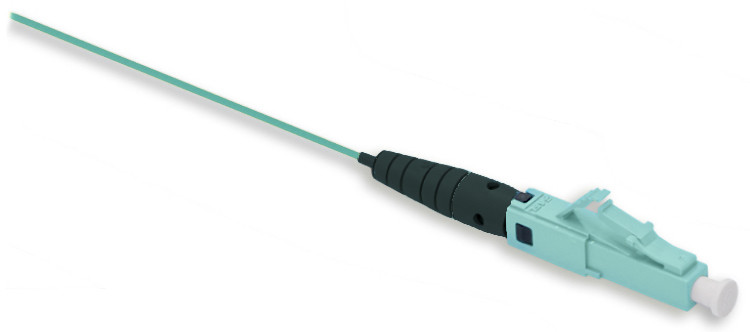

Multimode LC/PC FUSEConnect Fusion-Spliced Connector FUSE2-LC9M50L-6

Product Description

AFL’s FUSE2-LC9M50L-6 LC FUSEConnect fusion-spliced LC, field installable connectors are uniquely designed to eliminate the need for polishing, adhesives, crimping, and index matching gel in the field, which minimizes the potential for operator error and expensive connector scrap. The FUSEConnect family utilizes a fusion splicer to terminate the connector in the field and address return loss concerns present in analog optical networks.

These next generation LC/UPC splice-on connectors feature a simplified and improved design for ease of installation and an updated look. Compatible with Fujikura field fusion splicers and most other fiber holder-based fusion splicing platforms.

Connector: LC/PC 50um OM3/OM4 Laser Optimized Multimode
Color: Aqua
Cable type: 900um
Insertion Loss: 0.10 dB (average), 0.25 dB (maximum)
Return Loss: ≤ -35dB

6 pack

Product Videos

Installing the AFL FuseConnect™ Fusion Splice Field-Terminated Connectors - LC 04:37

This video demonstrates the AFL recommended procedure to terminate an optical fiber with an LC style FuseConnect Splice-On Connector. We will demonstrate an innovative field-termination process that eliminates polishing, adhesives, and crimping in the field while minimizing the potential for operator error and expensive connector scrap. Visit our website to learn more about the FuseConnect family of fusion splice-on connectors. http://www.afltele.com/products/optical_connectivity/connectors/FuseConnect.asp
