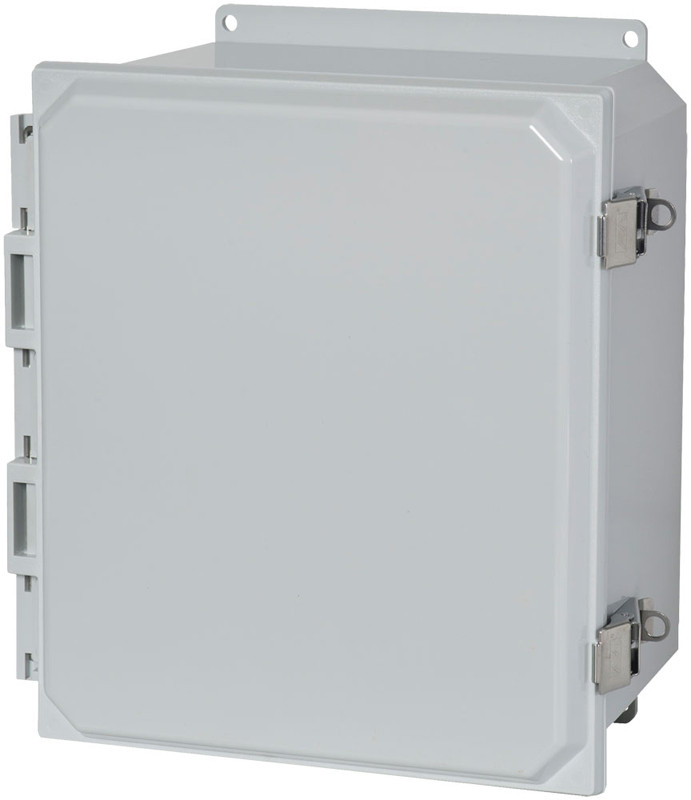

NEMA 4X Polycarbonate Junction Box (PCJ14126LF)

SKU:
PCJ14126LF
Quantity:

Product Description

The PCJ14126LF is designed to insulate and protect components in both indoor and outdoor conditions.

  • Injection moulded polycarbonate thermoplastic enclosure with matching cover is easily punched, cut, or drilled.
  • Polycarbonate material has a light gray finish
  • Enhanced UV inhibitors protect against outdoor weathering
  • Threaded brass inserts are provided for optional inner panel or terminal kit mounting, mounting hardware is included
  • Stainless steel 316 screw  fasteners
  • Door fasteners include a provision for padlocking snap latches
  • Molded hinge
  • Captive oil resistant gasket provides a positive seal
  • Polycarbonate flange for mounting
  • Operating temperatures between 130°C and - 35 °C (266°F to - 31 °F)
  • Impact index of  16 J (12 ft/lb)
  • UL 508A Type 1, 2, 3, 3R, 4, 4X, 12 and 13
  • cUL Type 1, 2, 3, 3R, 4, 4X, 12 and 13 per CSA 22.2 No. 94
  • Complies with
    • NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13
    • IEC 60529, IP66
    • Flammability V-O per UL 94
    • UV rating (f1) per UL746C - UV stabilized for outdoor use
