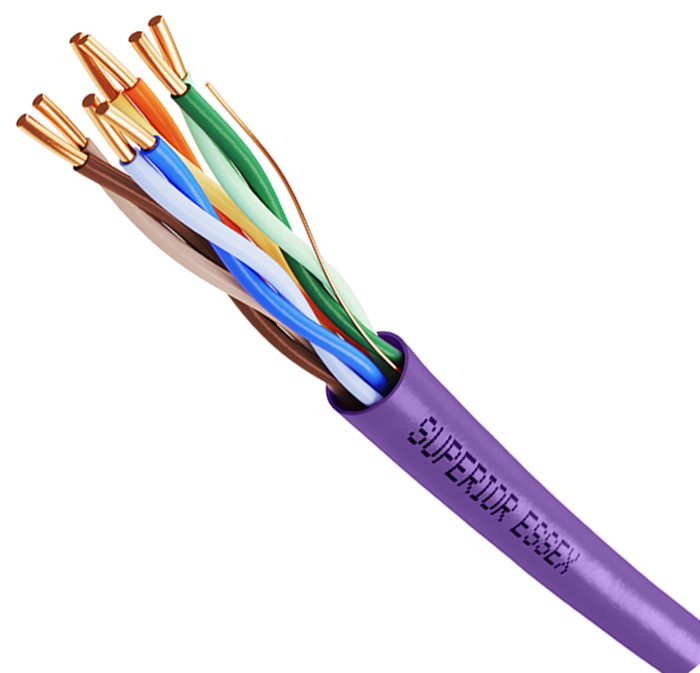

PowerWise® 1G 4PPoE cables provide the best performance and overall value for 4 Pair Power over Ethernet (4PPoE) applications requiring up to 100W of power and up to 1 Gigabit Ethernet performance. PowerWise 1G 4PPoE cables are specifically designed to mitigate temperature build-up offer exceptional energy efficiency and ensure performance (up to 1 Gigabit Ethernet) over the lifetime of your system. Cable temperature increases are reduced and power efficiency is increased as a result of 22 gauge conductors and the heat dissipation element.

PowerWise 1G 4PPoE cable provides the performance benefits with a small diameter.  PowerWise 1G 4PPoE cables are the best solution to connect and power your 4PPoE and extended distance applications compared to standard category cable designs.

UL verified for extended distance applications.

1G 4PPoE rigorously tested for guaranteed performance up to 160 meters.

• 4 pair 22 awg solid copper - polyolefin insulation
• Flame retardant FR PVC jacket
• Heat dissipation element - coated copper
• Tested to 350 MHz
• Meets ANSI/TIA-568.2-D specification
• CableID® alpha numeric code printed every 2 feet allows both ends of a cable run to be easily identifiable without the need to separately label or tone the cable
• QuickCount marking system in feet and meters provides remaining length of cable on reel.
• 10BASE-T through 1000BASE-T Ethernet
• Power over Ethernet (PoE) – IEEE 802.3at Type 1 thru 4
• 4PPoe
• UL listed CMR-LP
• c(UL) Listed CMR
• HDBaseT Class A and B
• Made in USA
