PowerWise® 1G 4PPoE Indoor/Outdoor Sunlight Resistant AWG 22 cable is specifically designed for extreme sunlight and temperature applications. The level of UV-blocking compounds is the same as in traditional Outside Plant (OSP) cable products with the black color preventing damage from long-term UV sunlight exposure. Applications include Ethernet interconnect cable for Wi-Fi or retrofit cable installations that employ exterior runs having long-term outdoor exposure between two environmentally protected points. CMX Outdoor cables are designed to extend the run between the Network Interface Unit and the point of entry into the interior of a residence or a premise. This cable has been tested and listed as UL® 444 Sunlight Resistant compliant. This designation requires the cable to resist 720 hours of harsh UV and heat, which is more than twice the exposure time of the standard 300 hours required in the CMX Outdoor test. In addition, the CMR listing allows the cable to be used in riser spaces per UL 1666, eliminating the need to transition to fire resistant cables.

PowerWise 1G 4PPoE Indoor/Outdoor AWG 22 with heat dissipation element cables provide the best performance and overall value for 4 Pair Power over Ethernet (4PPoE) applications requiring up to 100W of power and up to 1 Gigabit Ethernet performance. PowerWise 1G 4PPoE Indoor/Outdoor cables are specifically designed to mitigate temperature build-up offer exceptional energy efficiency and ensure performance (up to 1 Gigabit Ethernet) over the lifetime of your system. Cable temperature increases are reduced and power efficiency is increased as a result of 22 gauge conductors and the heat dissipation element.

PowerWise 1G 4PPoE Indoor/Outdoor cable provides the performance benefits with a small diameter. PowerWise 1G 4PPoE Indoor/Outdoor cables are the best solution to connect and power your 4PPoE and extended distance applications compared to standard category cable designs.

UL verified for extended distance applications.

1G 4PPoE rigorously tested for guaranteed performance up to 160 meters.

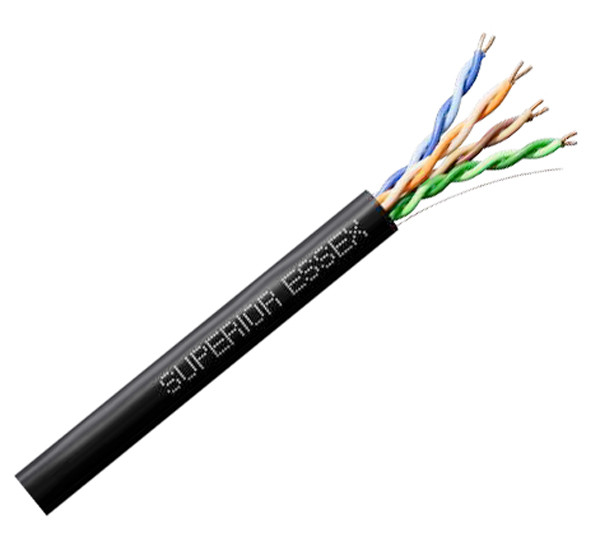

• 4 pair 22 awg solid copper - polyolefin insulation
• Heat dissipation element - coated copper
• Tested to 350 MHz
• Tough, flame retardant, weather, sunlight and abrasion resistant riser PVC jacket - Black
• Meets ANSI/TIA-568.2-D specification
• CableID® alpha numeric code printed every 2 feet allows both ends of a cable run to be easily identifiable without the need to separately label or tone the cable
• QuickCount marking system in feet and meters provides remaining length of cable on reel.
• 10BASE-T through 1000BASE-T Ethernet
• Power over Ethernet (PoE) – IEEE 802.3at Type 1 through 4
• 4PPoE
• UL and c(UL) listed CMR
• UL and c(UL) listed CMX
