PowerWise® 1G 4PPoE cables provide the best performance and overall value for 4 Pair Power over Ethernet (4PPoE) applications requiring up to 100W of power and up to 2.5GBASE-T Ethernet performance. PowerWise® 1G 4PPoE cables are specifically designed to mitigate temperature build-up offer exceptional energy efficiency and ensure performance (up to 2.5GBASE-T Ethernet) over the lifetime of your system. Cable temperature increases are reduced and power efficiency is increased as a result of 22 gauge conductors and the heat dissipation element.

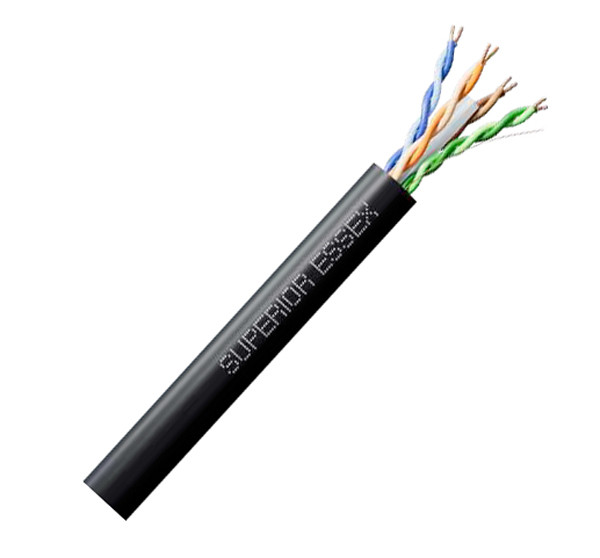

PowerWise® 1G 4PPoE cables are the best solution to connect and power your 4PPoE and extended distance applications compared to standard category cable designs. PowerWise® 1G 4PPoE OSP Unshielded is a robust category cable designed to provide an extension of the LAN beyond the premises or in situations where the NEC code requires an OSP-rated cable. The cable consists of a core of four (4) balanced twisted pairs surrounded by Superior Essex PFM™ gel that does not drip or flow, even in cell tower applications at elevated temperatures. The core is jacketed with a sunlight and abrasion resistant black, polyethylene outer jacket. This unshielded design is suitable for the following deployments: duct, underground conduit and tower.

UL verified for extended distance applications.

1G 4PPoE rigorously tested for guaranteed performance up to 160 meters.

• 4 pair 22 awg solid copper - polyolefin insulation
• OSP jacket - black, sunlight resistant polyethelene
• PFM gel-filled core
• Heat disspation element - coated copper
• Tested to 350 MHz
• Meets ANSI/TIA-568.2-D specification
• CableID® alpha numeric code printed every 2 feet allows both ends of a cable run to be easily identifiable without the need to separately label or tone the cable
• QuickCount marking system in feet and meters provides remaining length of cable on reel.
• 10BASE-T through 1000BASE-T Ethernet
• Power over Ethernet (PoE) – IEEE 802.3at Type 1 thru 4
• 4PPoE
• 40°F to +167°F (-40°C to +75°C)

Made in the USA
