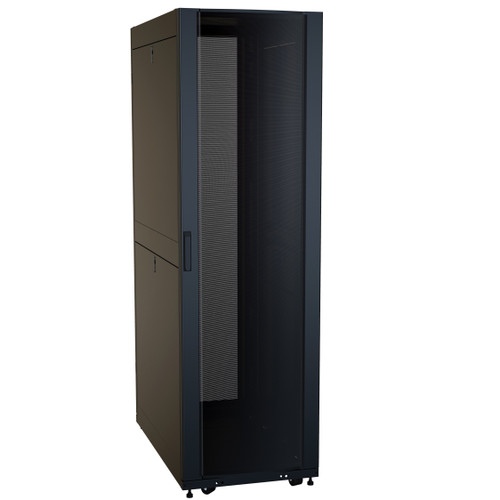

• 42U  x  42.74" overall depth.
• Surface-mounted doors allow full mounting depth utilization and include a locking swing handle.
• Included PDU cable trays for cable management and industry-standard vertical PDU installation.
• The top panel is easily removable for cable installation, includes generous cable access with brushed cable entry and s three (3) 2U Rack panel cover panels
• The bottom of the cabinet is open.
• Ships with doors and rails fully assembled and ready for installation on-site. Side panels come packaged inside the cabinet for on-site installation.
• Front door swings open 165-degrees.
• The built-in joining kit speeds up the baying of multiple RB-DC cabinets within a row.

Specifications

• Constructed in 16-gauge mild steel.
• Square hole mounting rails are constructed in 13-gauge mild steel, includes rack unit indicators, and are finished with a powder coat.
• Rails easily adjust in-depth in 1/4" increments.
• Tested to 2,200 lbs (1,000 kg) of equipment load. Rated for up to 300 lbs (136 kg) rolling caster load rating (including the weight of cabinet frame).
• Grounding studs bonded to the frame, side panels, and doors.
• Finished in textured black powder paint.
• Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
• RoHS Compliant.
• Overall dimensions: 78.64" H x 23.62" W x 42.74" D
• Usable depth: 35.38" without PDU tray / 30.20" with PDU tray

Included Components

• Steel frame with factory-installed leveling feet, recessed casters, and grounding studs.
• Two (2) pairs of adjustable depth EIA-compliant square hole punched mounting rails.
• Starter pack of (50) M6 screws, cage nuts, and washers included.
• One (1) perforated front door (63% open area vented) with a locking swing handle.
• One (1) perforated split/barn rear door (63% open area vented) with locking swing handle.
• Two (2) pairs of solid, split, locking, and removable side panels.
• One (1) removable vented top panel.
• Two (2) PDU cable trays are mounted in the rear.
