Versi-Duct 8" x 80" Vertical Cable Manager Front/Rear (8980L-VFR)

SKU:
8980L-VFR
Quantity:

Product Description

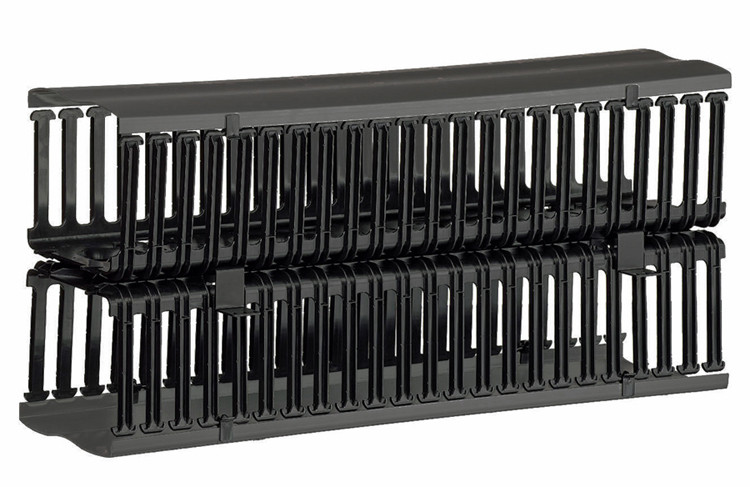

Leviton's 8980L-VFR Front and Rear Versi-Duct Vertical Cable Manager uses slotted ducts to route copper and fiber optic cables. The  80-inch duct is comprised of two 40-inch ducts which span the full length of a standard seven-foot equipment rack. Mounted on the side of rack the vertical duct is designed to route, protect, and manage fiber or copper cable. Bend-radius compliant cable router complies with ANSI/TIA standards, ensuring a minimum 1.18-inch bend radius. Center mounting is achievable using the 89265-BKT mounting bracket.

  • Versatile solution for fiber/copper cable organization and management
  • Dimensions: 8" x 8" rear and 8"x 8" front
  • Dual hinged, cable concealing covers included
  • Mounts on standard equipment racks with top, bottom, and  side cable entry
  • Finger alignment with rack spacing
  • ANSI/TIA-568-C
  • cULus Listed
  • Materials: (channel): ABS rated for UL94HB / (cover): PVC rated for UL 94V-0
  • Includes cable retainers, slack loop organizers, mounting brackets, and covers
