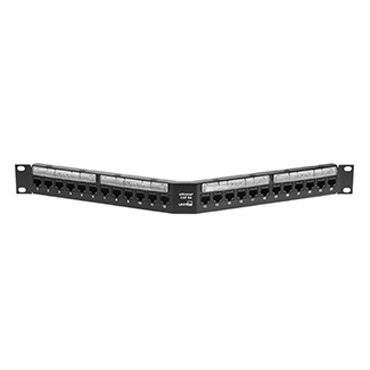

Leviton 6A587-U24 10G eXtreme CAT 6A 10 Gig Angled Patch Panels meet all requirements for Cat6A component performance as defined in ANSI/TIA- 568-C.2 and all channel performance requirements in ISO 11801 Class EA and IEEE 802.3an for 10GBASE-T. The Cat6A patch panel's 110 IDCs  include conductor retention features and pair separation towers designed specifically for the large conductor size in Cat 6A cable. The patch panels incorporate a triple-stage compensation design with an integrated flexible circuit to enhance permanent link and channel performance. The panel circuit board design incorporates an isolation gap to minimize alien crosstalk.

• Angled design conserves rack space by routing cords directly into vertical cable management
• Independently tested and verified by Intertek (ETL) for Cat 6A component performance
• Patented triple-stage compensation design with integrated flexible circuit enhances link and channel performance
• Patented isolation gap on circuit board minimizes alien crosstalk between ports
• Conductor-retention feature holds individual conductors in place during termination
• Pair Separation Towers facilitate separation of Cat 6A conductors
• Separated blocks provide room to work with larger Cat 6A cables and help to identify first-pair position
• Terminates up to 50% faster than Cat 6A panels requiring additional termination manager
• Reversible card shows T568 A and B wiring schemes separately
• IDC stuffer caps provide termination strain relief
• Magnifying label holders adjacent to connectors
• One cable management bar included
• ANSI/TIA-568-C.2 component requirements for connecting hardware from 1 MHz to 500 MHz
• ISO 11801 Class EA
• cULus listed
• ANSI/TIA-1096-A
• IEEE 802.3at (Type 1) Power over Ethernet (PoE) applications up to 15.4 watts
• IEEE 802.3at (Type 2) Power over Ethernet (PoE+) applications up to 30 watts
• IEEE Draft 802.3bt/D1.2 (Type 3) Power over Ethernet (PoE+) applications up to 60 watts
• IEEE Draft 802.3bt/D1.2 (Type 4) Power over Ethernet (PoE+) applications up to 100 watts
• Cisco Universal Power Over Ethernet (UPOE) applications up to 60 watts
• Power over HDBaseTTM (POH) applications up to 100 watts
• 16-gauge steel, painted black, PCB and plastics components are UL94V-0
• Black painted finish with white silk-screened port numbers
• Made in the USA
