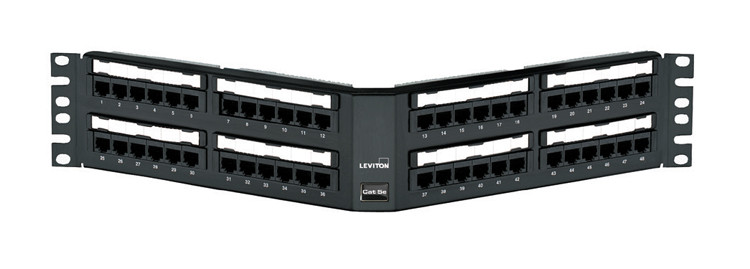

Leviton's 5G597-U48 48 port Cat5e Angled Patch Panels are designed to increase capacity in industry-standard 19-inch racks and cabinets. The unique 128-degree angled design easily routes cables into vertical cable managers, minimizing the need for additional horizontal cable management in the rack.

• Features a 128-degree angled design
• Patented Retention Force Technology protects tines from damage and increases system longevity
• Universal T568A and T568B wiring
• Color-coded front labeling for easy port identification (ANSI/TIA-606-B compliant)
• Terminates 26-22-gauge solid conductors
• ANSI/TIA-568-C.2
• ISO/IEC 11801
• ANSI/TIA-1096-A (formerly FCC Part 68)
• cULus Listed
• IEEE 802.3at (Type 1) Power over Ethernet (PoE) applications up to 15.4 watts
• IEEE 802.3at (Type 2) Power over Ethernet (PoE+) applications up to 30 watts
• IEEE 802.3bt/D1.7 (Type 3) Power over Ethernet (PoE+) applications up to 60 watts
• 14-gauge steel, powder coated black; PCB and plastic components are rated per UL 94V-0
• Made in the USA
