48 Port Cat5e Universal Recessed-Angled Patch Panel (5W597-U48)

SKU:
5W597-U48
Quantity:

Product Description

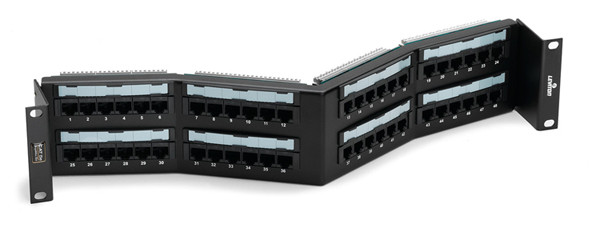

Leviton's 5W597-U48 48 Port Cat5e Recessed Angled Patch Panel is designed to increase capacity in industry-standard 19-inch racks and cabinets. The unique dual-angle design easily routes cables into vertical cable managers, minimizing the need for additional horizontal cable management in the rack. This system promotes long-term cable management and attractive cabling installations.

  • 48 port Cat5e
  • Low profile provides more aisle space in closets
  • Unique dual-angle design reduces cable bend radius and keeps terminations within a standard 3-inch depth rack
  • Patented Retention Force Technology protects tines from damage from 4- or 6-pin plugs
  • Universal T568A and T568B wiring cards for 110-style  IDC terminations
  • Color-coded front labeling for easy port identification (ANSI/TIA-606-B compliant)
  • Terminates 26-22 gauge solid conductors
  • Capable of multiple reterminations
  • 16-gauge steel, painted black; PCB and plastic components are rated per UL 94V-0
  • ANSI/TIA-568-C.2ISO/IEC 11801ANSI/TIA-1096-A (formerly FCC Part 68)cULus Listed
