Berk-Tek LM-RDT Cat6A cable features a reduced diameter of 0.230" (vs. 0.260" average Cat 6A cable), creating better flexibility, optimized cable management, and improved tray-fill ratio for high-density installations. It offers excellent signal isolation, with PoE and alien crosstalk performance that exceeds standards, making it an excellent choice for 802.11ac wireless, HD video, and IP security. The cable’s isolation wrap provides superior heat management and noise-reducing performance. The electrical performance is independently verified by ETL (Intertek) as part of the Leviton Verified Performance program.

Compact design optimizes pathway space and reduces pathway costs over other 6A cables
Improved flexibility and reduced bend radius enables ease of installation
Elimination of cable cross-filler increases speed of installation and reduces jobsite waste for a more sustainable future
Precision Twist Technology provides enhanced transmission performance
Worry-free PoE performance and virtually unlimited bundle size and tray fill
Made with Leviton FLX-1™ technology for maximum flexibility, tighter bend radius and smoother pulls
Smaller size and lower weight per reel means less greenhouse gases emitted during transportation and less warehouse space required for storage

FEATURES

• Reduced diameter of 0.230" (5.84 mm)
• 8 dB PSANEXT and PSAACRF margin to Cat 6A requirements
• Internal parameters compliant with Cat 6A standards
• Limited Power (LP) rating of 0.7 A
• Listing Temperature of 105 °C (221 °F)

CONSTRUCTION

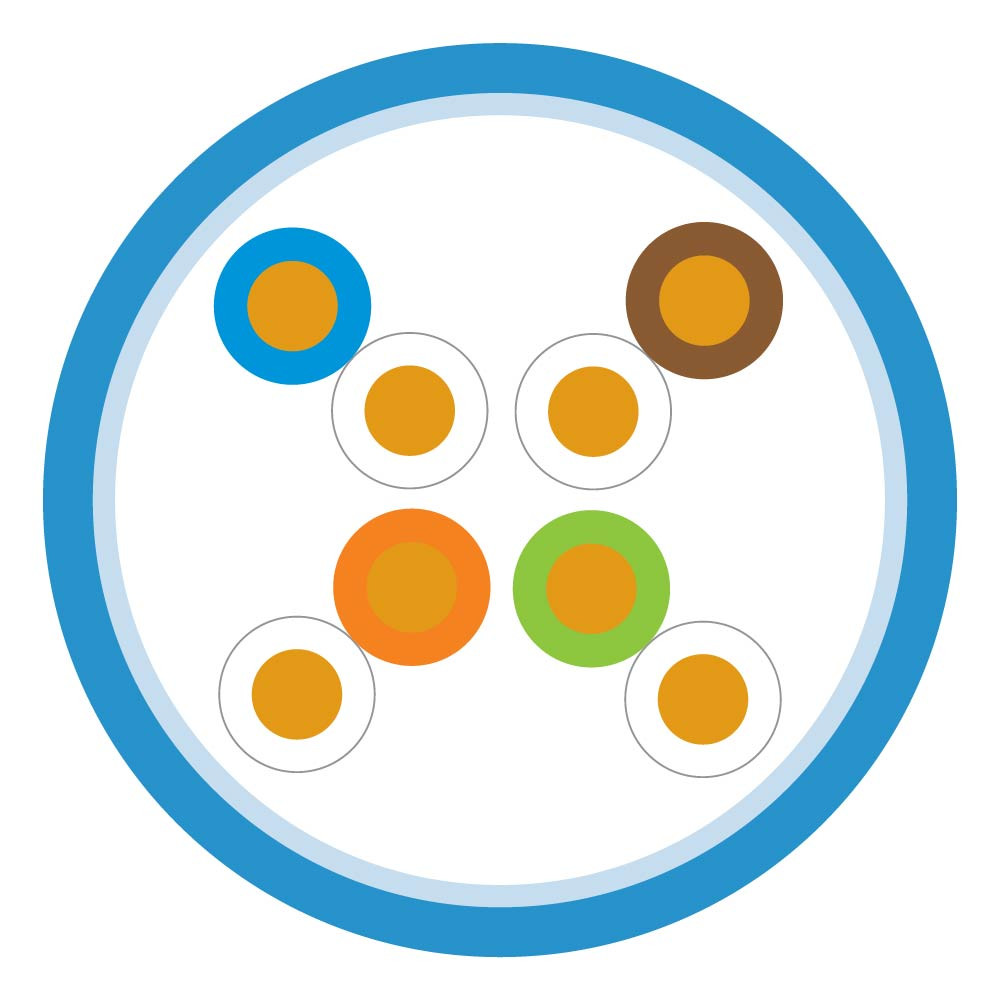

Bare copper wire insulated with thermoplastic. Two primaries are twisted together to form a pair and four such pairs are cabled together to form the basic unit. The cable core is surrounded by an isolation wrap and jacketed with flameretardant polymer alloy.

STANDARDS & REGULATIONS

• ANSI/TIA-568.2-D Category 6A
• RoHS Compliant

FIRE RATING

• Plenum - NFPA 70
• CMP - Plenum Rated
• UL Listed as CMP - LP (0.7A)

COUNTRY OF ORIGIN USA
