Berk-Tek riser rated LM-RDT Cat6A cable features a reduced diameter of 0.245" (vs. 0.260" average Cat 6A cable), creating better flexibility, optimized cable management, and improved tray-fill ratio for high-density installations. It offers excellent signal isolation, with PoE and alien crosstalk performance that exceeds standards, making it an excellent choice for 802.11ac wireless, HD video and IP security. The cable’s isolation wrap provides superior heat management and noise-reducing performance.

FEATURES

• Reduced diameter of 0.245" (6.22 mm)
• 8 dB PSANEXT and PSAACRF margin to Cat 6A requirements
• Internal parameters compliant with Cat 6A standards
• Limited Power (LP) rating of 0.5 A • Listing Temperature of 75 °C (167 °F)
• Performance to these specifications are independently verified by ETL in the Leviton Verified Performance program
• Compact design optimizes pathway space and reduces pathway costs over other 6A cables
• Improved flexibility and reduced bend radius enables ease of installation
• Elimination of cable cross-filler increases speed of installation and reduces jobsite waste for a more sustainable future
• Precision Twist Technology provides enhanced transmission performance
• Worry-free 100 W PoE performance with up to 360 cables in a single bundle
• Smaller size and lower weight means less greenhouse gases emitted during transportation
• Small diameter reels optimize storage space in warehouses
• TEKPAK boxes allow for the product to be deployed without additional equipment
• Product in TEKPAK boxes are manufactured using 100% renewable energy in a Carbon Neutral facility

CONSTRUCTION

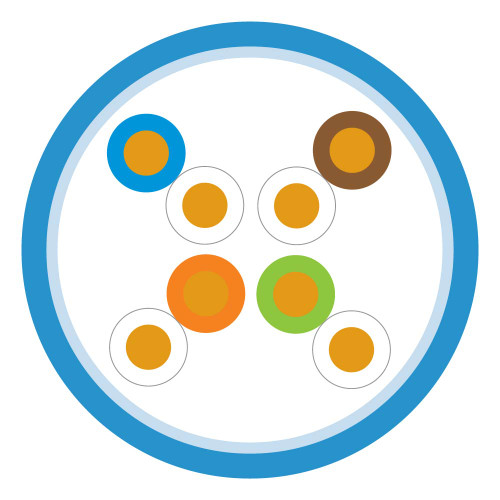

Bare copper wire insulated with thermoplastic. Two primaries are twisted together to form a pair and four such pairs are cabled together to form the basic unit. The cable core is surrounded by an isolation wrap and jacketed with flame retardant polymer alloy.

STANDARDS & REGULATIONS

• ANSI/TIA-568.2-D Category 6A
• IEEE 802.3 PoE Type 1, 2, 3, 4 (100 watts max)
• Cisco UPOE, UPOE+ (90 watts max)
• Power over HDBaseT™ PoH (95 watts max)
• RoHS Compliant

FIRE RATING

• Riser - NFPA 70
• CMR - Riser Rated
• UL Listed as CMR-LP (0.5A)
• FT4

COUNTRY OF ORIGIN USA
