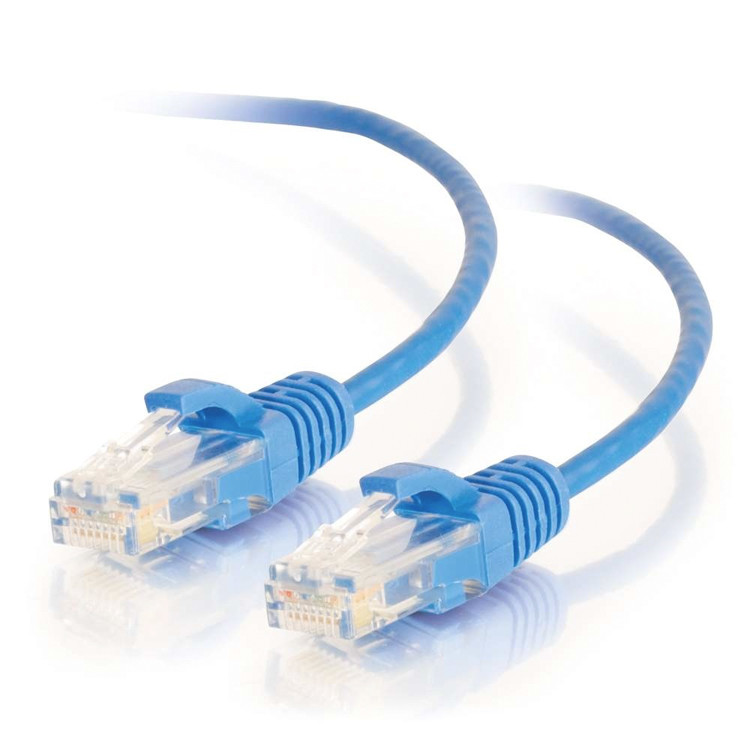

CAT6 28awg Reduced Diameter Patch Cables


Product Description

Cat6 Reduced Diameter 28awg Patch Cables are the perfect solution for high density data center applications. The use of 28 AWG conductors allows for a 36%reduction in diameter over a standard Cat6 network patch cable. This reduced diameter provides a smaller cable surface area which allows for increased airflow when compared to standard Cat6 cables. The 28 AWG conductors also allow this cable to have a smaller bend radius than standard Cat6 cables. The small size and small bend radius of this cable allows it to be easily routed through cable management panels.

  • Cable: Cat6 28 AWG, unshielded, 4-twisted pair, stranded copper
  • Cable diameter: .150” Nom O.D.
  • Tested to 550MHz.
  • High performance modular plug contacts are plated with 50 micro inches of gold plated phosphor bronze plug contacts
  • ROHS compliant
  • Meets IEEE 802.3af and IEEE 802.3at for PoE applications (reference maximum bundle sizes)


Maximum cable length recommendations:

  • 96 Meter Channel (90 meters of horizontal cable and up to 6 meters of slim network patch cables)
  • 93 Meter Channel (83 meters of horizontal cable and up to 10 meters of slim network patch cables)
  • For POE/POE+ applications, limit bundles to 40 cables due to heat dissipation of these reduced diameter cables.
