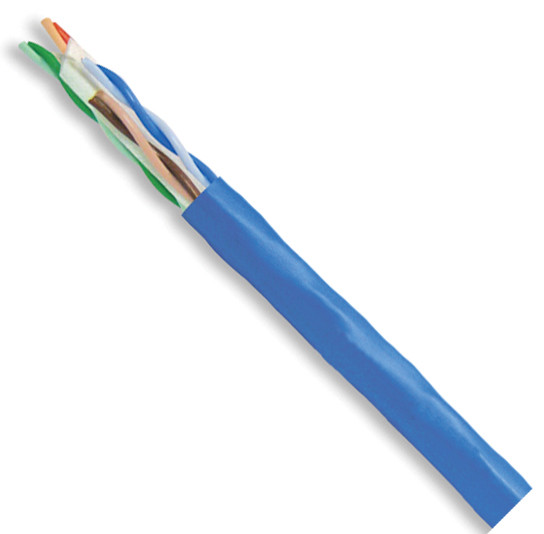

Superior Essex 10Gain Cat6A 10Gig Riser Data Cable 1000 feet

SKU:
6A-272-2A
Quantity:

Product Description

Superior Essex 6A-272 series 10Gain Cat6A UTP cable offers exceptional PSACR and PSAACRF (PSAELFEXT) performance assurance for 10 GbE and multiple high bandwidth applications. This cable meets the internal and alien cross-talk performance requirements of ANSI/TIA-568-C.2 as tested in a 6 around 1 configuration. With guaranteed performance out to 500 MHz and independently verified and monitored by UL, 10Gain CAT 6A cable demonstrates superior capability for 10 Gigabit Ethernet (10GbE) and all other bandwidth intensive and legacy applications.

Applications
10BASE-T through 10GBASE-T Ethernet
Power over Ethernet (PoE) – IEEE 802.3af
PoE+ – IEEE 802.3at Type 1 and 2
ATM and token ring
Backward compatible to legacy protocols and applications

  • 23AWG conductors, solid annealed copper
  • PVC Jacket  - Flame retardant (FR) PVC
  • Cross Web Pair Separator
  • Nominal OD - .35"
  • UL Verified CAT 6A
  • UL, c(UL) Listed CMR
  • UL Verified CAT 6A
  • Tested to 650 MHz
  • CableID® alpha numeric code printed every 2 feet alows both ends of a cable run to be easily identifiable without the need to separately label or tone the cable
  • QuickCount® marking system in feet and meters provides remaining length of cable on reel
  • Made in the USA

1000 foot
