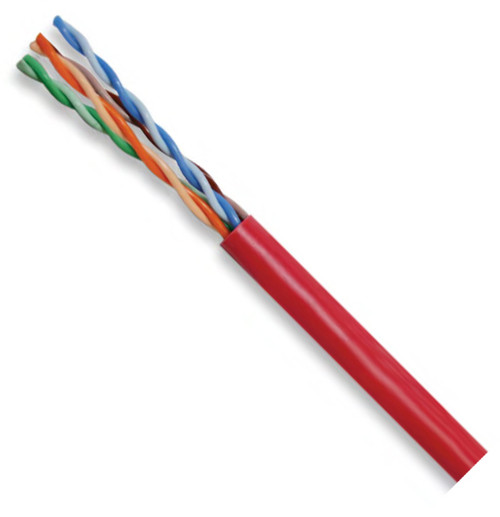

Superior Essex Cat6 Riser Voice-Data Cable

SKU:
77-240-2A
Quantity:

Product Description

Superior Essex Series 77 Riser rated Cat6 cable provides exceptional value for jobs that require a standards compliant Cat6 cable at a cost-effective price.

Applications:
10BASE-T through 1000BASE-T Ethernet
Power over Ethernet (PoE) – IEEE 802.3af
PoE+ – IEEE 802.3at Type 1 and 2
ATM and token ring

  •  4 pair 23 awg Solid annealed copper - Polyolefin insulation
  • Tested to 250 MHz
  • Typical performance to 550 MHz
  • Flame retardant (FR) PVC Jacket
  • Meets ANSI/TIA-568-C.2 specification
  • “WideMouth” POP™ box design reduces tension on wire to ensure proper electrical performance after installation
  • CableID® alpha numeric code printed every 2 feet allows both ends of a cable run to be easily identifiable without the need to separately label or tone the cable
  • QuickCount marking system in feet and meters povides remaining length of cable on reel.
  • 10BASE-T through 1000BASE-T Ethernet
  • Power over Ethernet (PoE) – IEEE 802.3af
  • PoE+ – IEEE 802.3at Type 1 and 2
  • UL Verified CAT6
  • UL, c(UL) Listed CMR

Made in the USA
