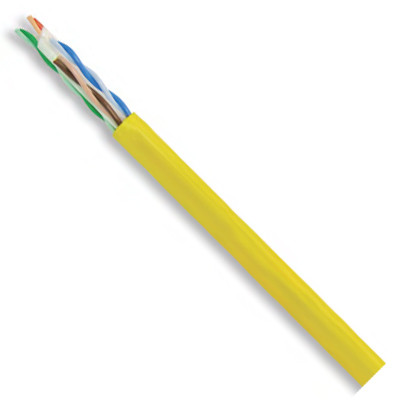

Superior Essex NextGain Cat6eX Cable CMR Riser

SKU:
54-246-2A
Quantity:

Product Description

Superior Essex riser rated NextGain Category 6eX cable brings UTP performance to a new level. Guaranteed for 7 dB of headroom over the minimum requirements of Cat6 NEXT standards, this cable maximizes bandwidth for today’s leading edge applications and those of the future. With positive ACR verified beyond 300 MHz, NextGain CAT 6eX cable demonstrates superior capability for ATM, Gigabit Ethernet and other bandwidth intensive applications. Contributes toward 1 LEED point under the Material and Resources credit (MRc)=

Exceptional performance over CAT 6 requirements
Guaranteed NEXT of 7 dB greater than CAT6 requirements
Guaranteed ACR of 30 dB at 100 MHz and 11.7 dB at 250 MHz

10BASE-T through 1000BASE-T Ethernet
Power over Ethernet (PoE) – IEEE 802.3af
PoE+ – IEEE 802.3at Type 1 and 2
ATM and token ring
Supports legacy protocols and applications

  • 4 pair 23 awg Solid Annealed Copper - Polyolefin insulation
  • Tested to 650 MHz
  • Guaranteed performance to 550 MHz
  • Cross-web pair separator
  • Flame retardant (FR) PVC Jacket
  • Meets ANSI/TIA-568-C.2 specification
  • BrakeBox® payout control system
  • CableID® alpha numeric code printed every 2 feet allows both ends of a cable run to be easily identifiable without the need to separately label or tone the cable
  • QuickCount marking system in feet and meters povides remaining length of cable on reel.
  • UL Verified CAT6
  • UL, c(UL) Listed CMR
  • Made in the USA

1000 foot BrakeBox
