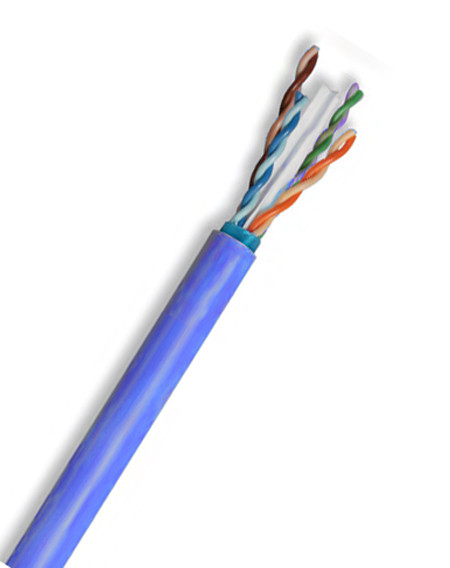

10 Gain XP+ CAT 6A cable meets or exceeds all industry requirements including ANSI/TIA-568.2-D. This cable utilizes a proprietary core wrap which assures excellent alien crosstalk performance. This cable fully complies with UL 444 requirements for an unshielded twisted pair product. 10Gain XP+ plenum cable has a nominal 0.25” diameter that allows for higher cable density than other CAT 6A cable products. 10Gain XP is ideal for PoE applications requiring higher levels of current and simultaneously up to 10 Gigabit Ethernet.

• 23AWG conductors, solid annealed copper
• Jacket - CMP: FR, low smoke PVC
• Guaranteed 15 dB AXT margin
• Nominal OD - .250"
• UL Verified CAT 6A
• c(UL) Listed CMP
• UL Listed CMP-LP
• 10BASE-T through 10GBASE-T Ethernet
• Power over Ethernet (PoE) – IEEE 802.3bt Type 1 to 4
• HDBaseT Class A and B
• Backward compatible to legacy protocols and applications
• Tested to 650 MHz
• Non-conductive core wrap provides substantially more AXT protection without grounding or bonding
• CableID® alpha numeric code printed every 2 feet alows both ends of a cable run to be easily identifiable without the need to separately label or tone the cable
• QuickCount® marking system in feet and meters provides remaining length of cable on reel
• UL 444, CSA C22.2 No. 214-08, UL 1666, NFPA 262,ANSI/TIA-568.2-D, Article 800, NEC (NFPA 70)
• Made in the USA
